AW-5600AT is a high-performance automatic weigh-wrap-label system designed for operational comfort and environmental friendliness. Reduces workload with easy and simplified operation, and conserves film and label consumption to achieve lower cost and a smaller environmental footprint.
All-in-one Wrapping Solution
- With the AW-5600AT, you can weigh, wrap, and label all with a single machine and one operator. The operation itself is a cinch.
- Main pop and bottom applicators enable a multitude of labeling options
- Large user-friendly color touch screen
- Easy film changing from the front of the machine
- Only 32 inches x 37 inches are needed for installation
- Eliminates blank white space on the label along with cost-saving and a more attractive packages
High Productivity
Economical & Ecological
Super-stretch technology makes the best use of film and helps reduce film usage, while linerless labels eliminate wasteful margins and help reduce label consumption. An energy conservation mode helps reduce power consumption while the machine is not operating. These features provide both economy and a smaller ecological footprint.
Effective Presentation By Various Labels
Flexible label design without restriction to a single label size enables you to highlight not only common product information but also product characteristics and freshness. Printing information such as recipe tips for consumers enhances promotional value. Shelf labels help improve productivity, while wrap-around labels deliver an impression of quality. Linerless labels can be applied by all labelers, including the bottom labeler.

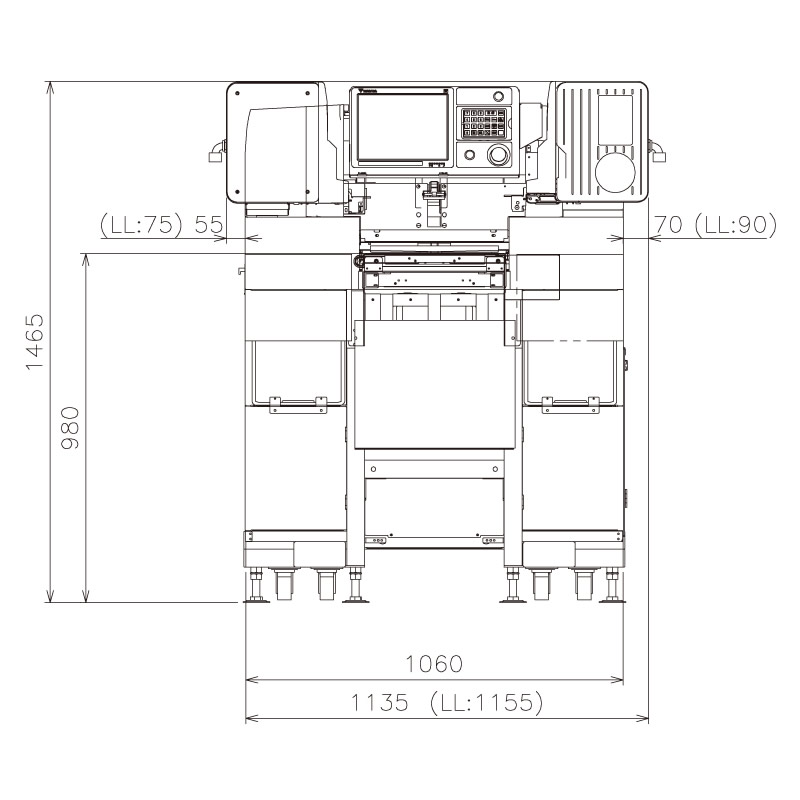

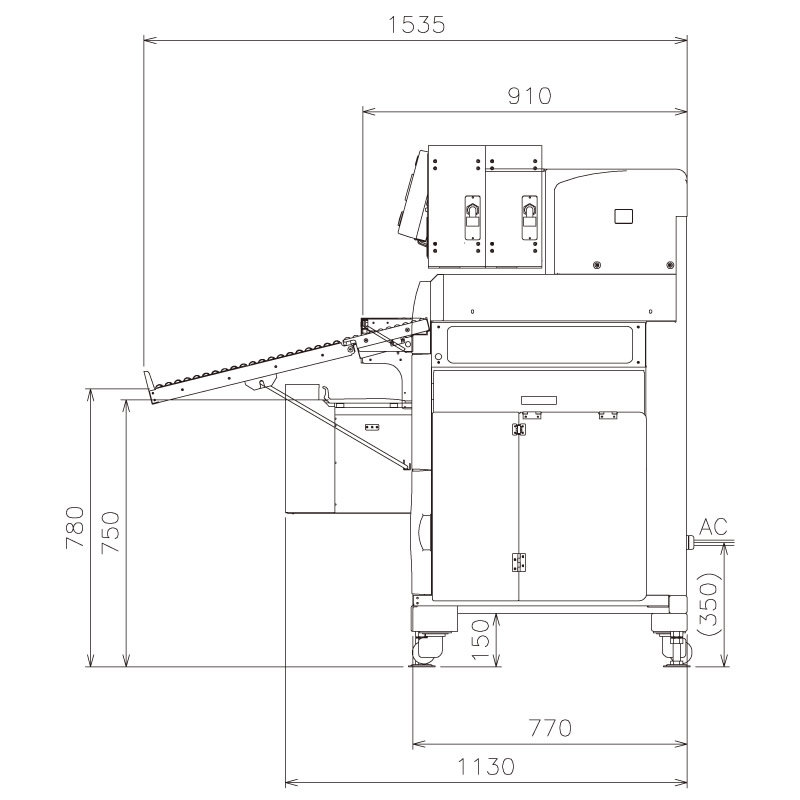

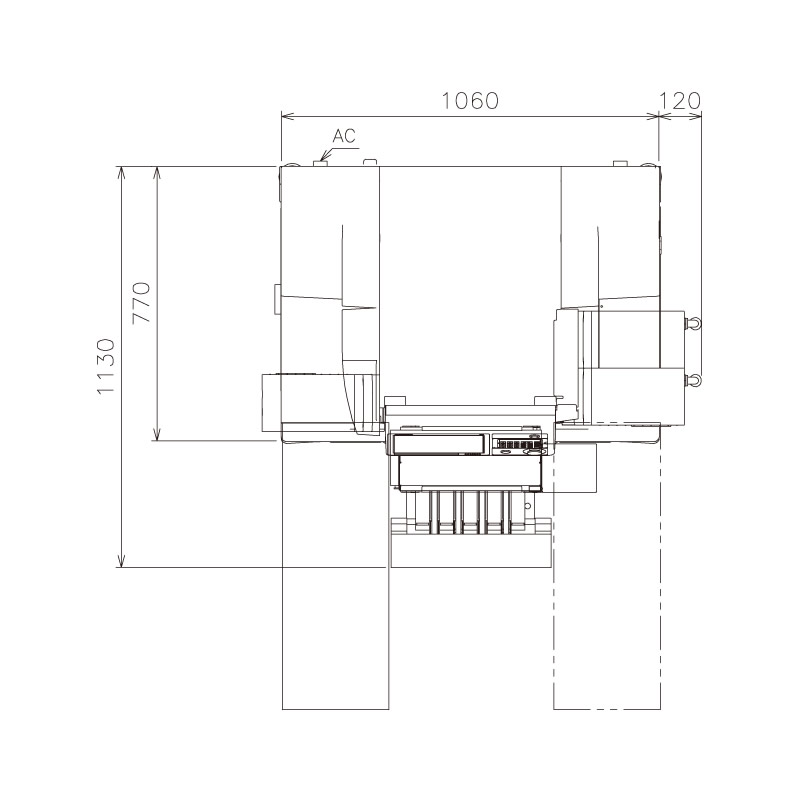

Dimensions
Wrapping
Wrapping Speed | Max. 36 packages/min |
---|---|
Package Size | Width: 130 to 380mm / Height : 10 to 150mm / Depth : 80 to 260mm The maximum combination of the above dimension is not available and the |
Film Roll Capacity | One |
Film Size | Accepts 260 to 400mm rolls |
Weighing
Multi interval | Single interval | |||
Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
Scale Interval | e=2/5g | e=1/2g | e=0.01 lb |
Labeling
Label Type | Thermal paper | |
---|---|---|
Labeling Application | Automatic | |
Label Size | Width: 40 to 80mm |
General Specifications
Net Weight | 400kg Single labeler type |
---|
