DS-166
Main Feature
Basic Specification
Main Feature
- Bright LCD display with 1/150,000 resolution
- One touch/digital tare subtraction
- Zero recall function
- Two set points for HIGH/OK/LOW
- RS-232C interface link to PC
Basic Specification
General Specifications

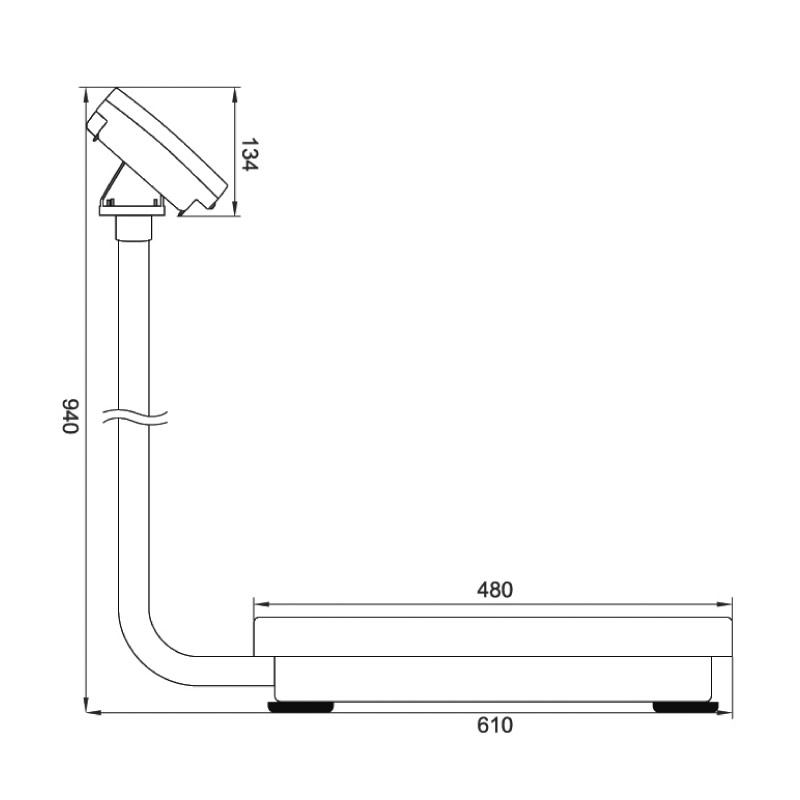

Dimensions
| Net Weight | 1.8kg/2kg(with battery) |
Weighing
| Capacity | Max 30/60 (10-20g) | Max 60/150kg (20-50g) |
Analog Section
| Input Sensitivity | 0.4mV/V-4mV/V |
| Load Cell Excitation | 5VDC, 60mA(max) |
| Speed of A/D conversion | 20 times/sec ~ 30 times/sec |
| Number of load cells | Max. 4 load cells(350Ω) |
Digital Section
| Display | 6 digits |
| Display Division | 1, 2, 5 |
| Decimal Point Location | 6 positions 0,00000 thru 000000 |
| Marks | “Zero”, “NET”, “STABLE”, “LOW BATTERY”, “CHARGING”, “kg”, “lb”, “HIGH”, “OK” and “LOW” |
Operating Conditions
| Power Source | AC 240/230/220V, 117/110V(+10%, -15%)(factory preset), Rechargeable battery(6V 1.2Ah) |
| Power Consumption | 18W(AC), 0.7W(battery) |
| Operating Temperature | -10 °C ~ +40 °C |
| Operating Humidity | 15% ~ 85% RH |
