DS-782B (Bench Type)
DS-782P (Pole Type)
Main Feature
Basic Specification
Main Feature

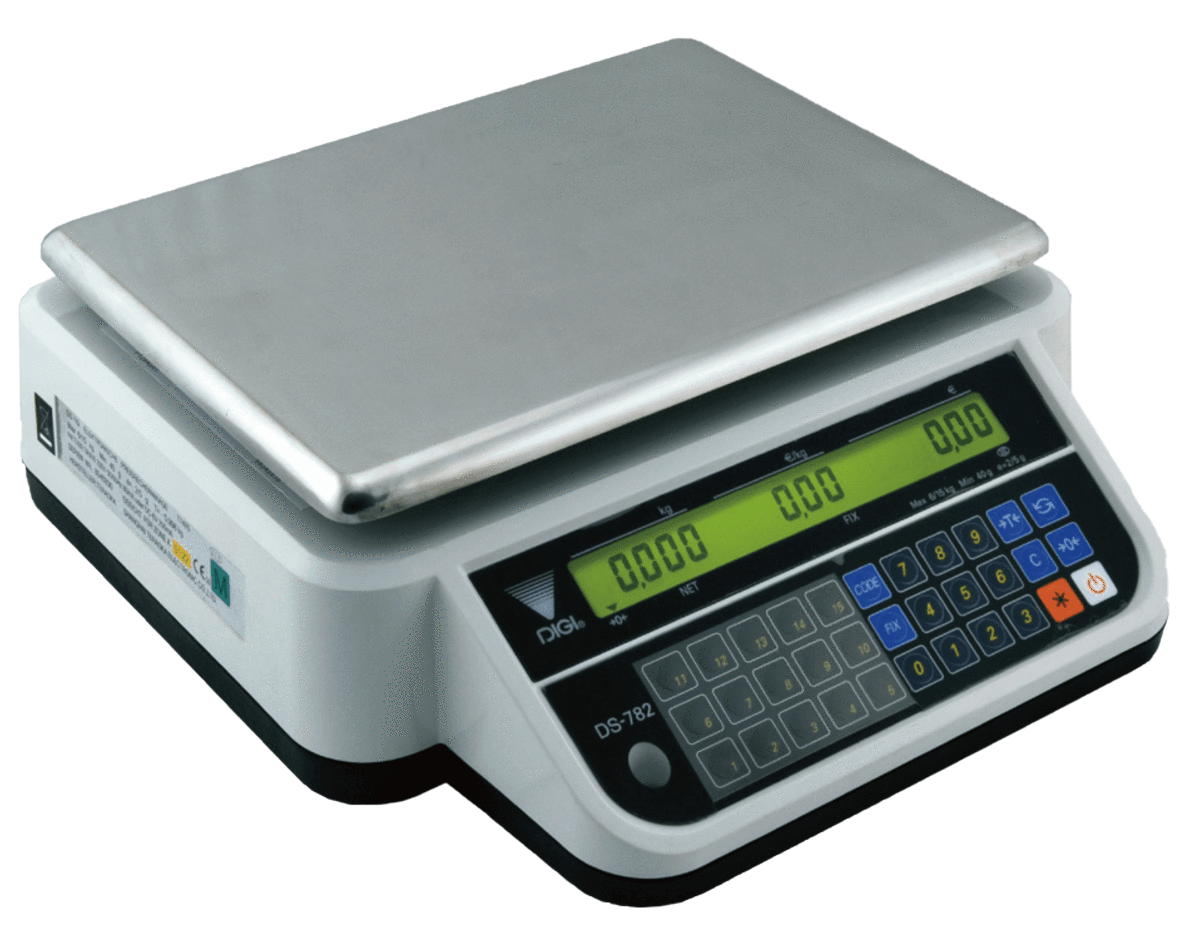

DS-782 is an accurate, user-friendly price computing scale for speedy weighing transactions.
- Compact body
- High contrast LCD display with backlight
- Up to 99 PLUs programmable
- 15 preset keys
- RS-232C interface for data output
- Operates on rechargeable batterie
- Weighing capacity up to 60kg
- Auto power-off function
- Fast weighing speed
- Portable and easy to carry design
- Present keys to call up the unit price or PLU for fast transactions
- 99 PLU can be programmed with the unit price and tare weight
Basic Specification
Dimensions
| DS-782B (W x D x H) | 335.7 x 349.7 x 123.5 mm |
| DS-782P (W x D x H) | 335.7 x 380.3 x 373.6 mm |
General Specifications
Net Weight | Platter Size | |
DS-782B | 3.5 kg | 300 x 225 mm (standard);320 x 245 mm (optional) |
DS-782P | 4.5 kg |
Capacity and Scale Interval
3/6 kg | 6/15 kg | 15/30 kg |
1/2 g | 2/5 g | 5/10 g |
Display
Weight | 5 digits |
Unit Price | 5 digits |
Total Price | 6 digits |
Operating Conditions
| Power Source | AC: 240/230/220V, 117/100V (Factory Optional) DC: 6V 5Ah rechargeable battery (Optional) |
| Operating Temperature | -10 °C ~ +40 °C |
| Operating Humidity | 15% ~ 85% RH |
Power Consumption | AC: 18W when using AC power DC: 1.2W when using rechargeable battery |
Options
RS-232C serial port |
Big Platter |
