SM-100B(Bench Type)
SM-100P(Pole Type)
SM-100H (Hanging Type)
Main Feature
Basic Speficication
Brochure
Main Feature
- Direct thermal/high-speed thermal printer
- Easy and quick loading of receipt or label
- Update the date and time automatically with the built-in clock
- Quick response to the weight change
- Wireless LAN network 2-in-1 Bridge (optional)
- 19 Segments Green LCD Display
- RS232 and Ethernet interface for data updating
- Easy and quick loading of receipt or label
- update the date and time automatically with the built-in clock
Basic Speficication
Dimensions (W x D x H)
| SM-100B | 386 x 416 x 128 mm |
| SM-100P | 385 x 478 x 485 mm |
| SM-100H | 340 x 310 x 860 mm |
Weighing
| Capacity | 3/6kg | 6/15kg | 15/30kg |
| Multi Interval 1/3000 | e=1/2g | e=2/5g | e=5/10g |
Display
| Operator Display | 19-segment LCD with green backlight |
| Tare Weight Display | 4 digits |
| Weight Display | 5 digits |
| Unit Price Display | 6 digits |
| Total Price Display | 7 digits |
General Specifications
| Number of Preset Keys | 76 |
| Memory Capacity | 1M (standard) |
| Standard Interface | Cash Drawer, RS-232C, Ethernet |
Operating Condition
| Power Source | 220 Volts (50/60 Hz) |
| Operating Temperature | -10 °C ~ +40 °C |
| Operating Humidity | 15% ~ 85% RH |
| Power Consumption | 0.15A |
Labeling
| Label Printing Size (W x L) | 60 x 220 mm (max) |
| Paper Width | 60 mm (max) |
| Printing Speed | 80 mm/sec for labels, 105 mm/sec for receipts |
Options
| Memory Expansion Board (2MB) |
| Wireless LAN (IEEE 802.11b) |

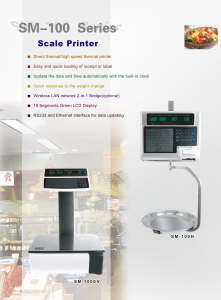

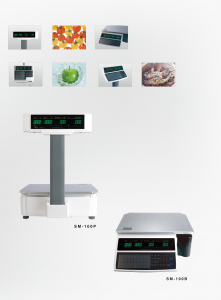

Brochure
